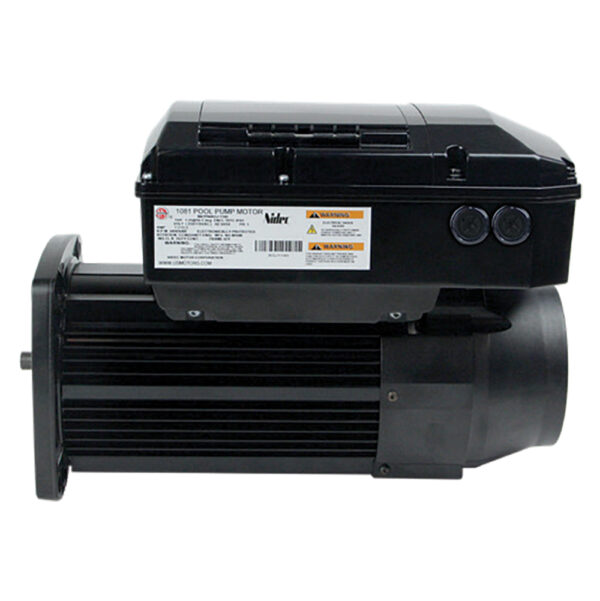

Neptune NPTQ165 1.65 THP Variable Speed 48Y Square Flange Pool Pump Motor

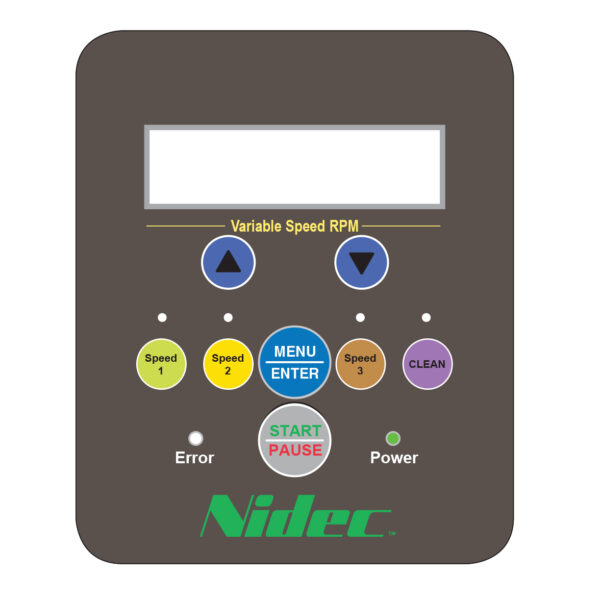

Description Although our specialty is rebuilding pool pumps and motors we also offer brand new units such as this with complete factory warranty.  This setup is the perfect solution to convert your existing pool pump into an ultra high efficiency variable speed design, at a much lower cost. The US Motors Neptune NPTQ165 will replace any 48Y/56Y motor ranging in horsepower power from .5hp up 1.65THP and is incredibly easy to use. The drive control features large up and down arrows to easily navigate through menus and settings, as well as easy one touch 10 RPM adjustments to fine tune your flow rate. You can program up to seven on/off time and speed schedules. If being meticulous isn’t your thing it will come preprogrammed with three ready to go energy savings schedules, just set the current time and date. Cleaning is easy with a single button to run the motor at full speed for 30 minutes. The LCD display displays the current time and operating speed, current mode of operation/time remaining, and the estimated amount of power draw. It’s also easy to take control manually with three one touch speed settings: Speed 1 = 1350 RPM Speed 2 = 1725 RPM Speed 3 = 2760 RPM Increased demand on the power grid, rising energy costs and environmental concerns have prompted many states to enact legislation requiring the use of more energy efficient pool motor products. Unlike the traditional pool pump motor, the energy saving, easily programmable US Motors Neptune unit can reach efficiency levels of up to 81 percent and help reduce energy costs! Its brushless permanent magnet motor, control, and user interface all work together to provide an efficient, easy-to-use alternative to existing induction motors. And, with an approximate one-year payback (depending on energy costs in your area) and continued savings throughout the life of the motor, the Neptune NPTQ165 is an excellent choice. Specifications: Total Horsepower (THP):1.65 RPM: 600-3450 Voltage: 115/230V Frequency: 50/60 Hz SF Amps: 13.6/6.8A System Efficiency: 81% Power Factor Corrected: Yes Part Number: NPTQ165 Frame Size: 48Y Replaces A.O. SmithUSQ1102, QC1102, SQ1102, USQ1102, QC1102, SQ1102, USQ1152, SQ1152 Magnetek CenturionB852, B661, B847, B853, B841, B842 EmersonEB852, EB847, EUSQ1072, ESQ1072, EB845, EB841, EB848, ES1102, EB853, EUSQ1102, EB854, EB858, ESQ1152, EUSQ1152, EB842 Compatibility Sta-Rite Dura-GlasAmerican Products Ultra-Flo Jandy/Zodiac JEP Sta-Rite Dura-Glas II American Products Power Pump Jandy/Zodiac SHPM Sta-Rite Max-E-GlasAmerican Products / Pentair Ultra-Flo Jandy/Zodiac SHPH Sta Rite Max-E-Glas II Pac-Fab/Pentair Challenger Jandy/Zodiac PHPF Sta-Rite Max-E Pro Pac-Fab/Pentair Whisper- Flo Jandy/Zodiac PHPM Sta Rite Intellipro Pac-Fab/Pentair Whisperflo XF Jandy/Zodiac FHPM Sta-Rite SuperMax Pac-Fab PinnacleJandy/Zodiac VS FloPro Sta-Rite SuperMax VS Pentair Super-Flo Jandy/Zodiac ePump Sta-Rite Dyna-Glas Pentair Super-Flo VS Jandy/Zodiac MaxHP MHPM Sta-Rite Dyna-Pro Hayward Eco Star Waterway Econo Flo Sta-Rite Dyna-Wave Hayward Tri Star Waterway SMF Sta-Rite Dyna-Jet Aqua-Flo Dominator Waterway Champion Sta-Rite PLBC Waterco SupaStream Waterway SVL56 Waterco SupaTuf Programming is easy!
